Tag Archives: Groovy

Running Groovy scripts as JARs

03 Monday Aug 2020

Posted by in General

≈ Leave a comment

Tags

, , , , , ,

For those who regularly follow my blog, I like Groovy as a way of scripting given its portability, proximity to Java, its use of the JVM means its really easy to work with. With the extra language features it makes it easy to work with without needing to setup Maven builds to manage dependencies for something simple. As a result, the utils I’ve produced to support Oracle API Platform CS (here) for example are written with Groovy.

However, not everyone is such a fan, or sees Groovy as niche and, to be honest in the last few years Python has made huge in roads in the scripting space. So I can appreciate the preference for Python to be used. This was really brought home to me by a peer review comments for my latest book project. This got me to thinking what options do I have to remove Groovy from the equation, without resulting in needing to mess with maven POM files. The options as I saw it are:

  • Replace any use of Groovy extensions with Java libraries
  • Switch to using Java 11 and the shebang feature (more in a minute)
  • Compile code with Groovyc and package the jars manually including dependencies.

From Java 11, the ability for a single Java file to be executed without compiling etc was introduced – known as shebang (more here). The issue here is a lot of applications have been certified against Java 8, and in an Enterprise environment this is important. Which means either installing Java 11 locally without changing environment variables, or you need to add code to switch Java versions as necessary. The upside being that you can run your code as a script, and then if necessary build it into a jar to distribute. Aside from the need to switch between JDK versions, Java’s language gets ever richer, but Groovy has a nice set of extensions that make JSON object navigation really nice, and these aren’t necessarily in core Java.

Groovy provides a tool to compile Groovy to bytecode for the JVM (i.e. create class files). From which we can create a JAR file with using the javac command. But this doesn’t bundle the Groovy dependencies necessary to run the jar, as a result Groovy still needs to be installed. You could do this through the use of a maven, Gradle or other build tools. But we’re back to creating a POM file or equivalent., and to be honest creating a POM file from scratch is slow going unless everything lines up neatly with file structures, which it won’t because when you produce a script you’re not expecting to need to worry about packages and associated folder structures.

In looking to see if someone had simplified the process I came across this excellent tool scriptjar (more here). Script jar takes the location of the class files, creates a jar file and loads it with the Groovy jar dependencies, and assembles the manifest file etc. Net result, a jar file created in 2 lines that has no Groovy deployment dependencies to use, and will work with older Java versions such as Java 8.

I started out referring to the API tools, but the same mechanism can be applied to the LogSimulator tool I’ve created that allows you to generate or replay existing logs in real-time or faster than real-time, making it easy to test log monitoring setups from a monitored source all the way through (today it only handles log file replaying or the use of the Java native logging).

Managing API Gateway Costs with Oracle API Platform

03 Wednesday Jul 2019

Posted by in API Platform CS, APIs & microservices, General, Oracle, Technology

≈ 2 Comments

Tags

, , , , , , ,

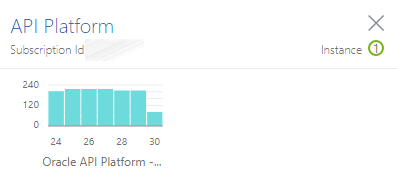

The Oracle API Platform adopted an intelligent pricing model by basing costs on API call volumes and Logical gateway node groupings per hour. In our book about the API Platform (more here). We suggested that a good logical grouping would be to reflect the development, test, pre-production and production model. This makes it nice and easy to use gateway based routing to different environments without needing to change the API policy configuration as you promote your solution through environments.

We have also leveraged naming and Role/Group Based Access Controls to make it easy to operate the API Platform as a shared service, rather than each team having its own complete instance. In doing so the number of logical gateways needed is limited (I.e. not logical gateway divisions on per team models needed). Group management is very easy through the leveraging of Oracle’s Identity Cloud Service – which is free for managing users on the Oracle solutions, and also happens to a respected product in its own right.

Most organisations are not conducting development and testing 365 days a year, for 24 hours a day (yes in an ideal world prolonged soak and load tests would be run to help tease out cumulative issues such as memory leaks, but even then it isn’t perpetual). As a result, it would be ideal to not be using logical gateways for part of the day such as outside the typical development day, and weekends.

Whilst out of the out of hours traffic may drop to zero calls and we may even shutdown the gateway nodes, this alone doesn’t effectively reduce the number of logical gateways as the logical gateway aspect of the platform counts as soon as you create the logical group in the management portal. This in itself isn’t a problem as the API Platform drinks it’s own Champagne as the saying goes, and everything in the UI is actually available as a published REST endpoint. Something covered in the book, and in previous blog posts (for example Making Scripts Work with IDCS Deployed PaaS and Analytics and Stats for APIs). Rather than providing all the code, you can see pretty much all the calls necessary in the other utilities published.

Before defining the steps, there are a couple of things to consider. Firstly, the version of the API deployed to a specific logical gateway may not necessarily be the latest version (iteration) and when to delete the logical gateway this information is lost, so before deleting the logical gateway we should record this information to allow us to reinstate the logical gateway later.

As deleting logical gateways will remove the gateway from the system, when recreating the gateway we can use the same name, but the gateway is not guaranteed to get the same Id as before, as a result, we should when rebuilding always discover the Id from the name to be safe.

A logical gateway can not be deleted until all the physical nodes are reallocated, so we need to iterate through the nodes removing them. When it comes to reconnecting the nodes, this is a little more tricky as reconnecting the gateway appears to only be achievable with information known to the gateway node. Therefore the simplest thing is when bringing the node back online we take the information from the gateway-props.json file and run a script that determines whether the management tier knows about the node. If not then just re-run the create, start, join cycle., otherwise just run the start command.

As with the logical gateway, re-running the create, deploy, start cycle will result in the node having a new Id. This does mean that whilst the logical gateway name and even the node names will remain the same, the analytics data is likely to become unavailable, so you may wish to extract the analytics data. But then, for development and test, this data is unlikely to provide much long term value.

So based on this, our sequence for releasing the logical gateway needs to be…

  1. Capture the deployed APIs and the iteration numbers,
  2. Ideally shutdown the gateway node process itself,
  3. Delete all the gateway nodes from the logical gateway,
  4. Delete the logical gateway,

Recover would then be …

  1. Construct the logical gateway,
  2. Redeploy the APIs with the correct iteration numbers to the logical gateway using the recorded information- if no nodes are connected at this stage, the UI will provide a warning
  3. As gateway nodes, come back online, determine if it is necessary to execute the create, start, join or just start

Of course, these processes can be all linked to scheduling such as a cron job and/or server startup and shutdown processes.

Making Scripts Work with IDCS Deployed PaaS

09 Saturday Feb 2019

Posted by in API Platform CS, APIs & microservices, General, Oracle, Technology, tools

≈ 5 Comments

Tags

, , , , , ,

A while back I made some utilities I developed to help with managing the API Platform. At the time we didn’t have access to an IDCS based environment, so credentials worked using basic auth (I.e. user name and password). But with environments managed by IDCS tokens are used.

As a developer with a Java background I have to admit to liking Groovy over Python for scripting, not to mention for the API Platform groovy is part of the gateway deployment and SDK. Meaning it is readily available in its 2.x form (3.x is relatively recent and aligning to the latest Java idioms). We haven’t tested against Groovy 3.0

Thank you to Andy Knight for sharing with us some Java code which I adapted to be pure Groovy (removing external dependencies for processing JSON). The result is a script that can be taken can be taken and worked into other scripts (which is what we have done for our previously provided scripts – Understanding API Deployment State on API Platform, Managing API Policy Versioning in Oracle API Platform, Documenting APIs on the Oracle API Platform). But this script can be used to get a token and display it on the command line or write it to file. Writing tokens to files is generally not good practise, but as a temporary measure when working on developing scripts arguably a managed risk.

The script can be found at https://github.com/mp3monster/API-Platform-Utils/tree/master/getToken and all the details on using the script can be obtained by passing -h as a parameter. The important thing is to understand how to obtain the Client ID and Client Secret, the details of which are described at https://docs.oracle.com/en/cloud/paas/api-platform-cloud/apfad/find-your-client-id-and-client-secret.html

Analytics and Stats for APIs

05 Friday Oct 2018

Posted by in API Platform CS, General, Oracle, Technology, tools

≈ 3 Comments

Tags

, , , , , , , ,

NOTE:This utility needs revamping to support IDCS for more see Making Scripts Work with IDCS Deployed PaaS

The Oracle API Platform provides the means to examine statistics and slice and dice the numbers by application, gateway, duration and so on resulting in visually appealing graphical representations.  The way the analytics works means you can book mark specific views, so you can return the same report view with the relevant features as often as you like.  However, presently there is no data export option.

The question why would I want to export the information comes down to several possible use cases, all of which relate to cost management.  The API Platform will eventually have all the desired data views, but now something to help address the following:

  • money-tization, we can see which consumer has been using the services by how much and then send the data to a companies accounting systems to invoice the users
  • Ability to examine demand and workload over time to create a projection of the likely infrastructure – to achieve this the API statistics need to be overlaid with infrastructure and performance details so we can extrapolate API growth against server workload.

To address these kinds of requirements, we have taken advantage of the fact the API Platform has drunk its own Champagne as they say and made many of the analytics querying APIs publicly available.  As with the other API Platform tools, the logic has been written in Groovy, and freely available for use – we’ve covered the code through a Create Common license.

Tool includes a range of parameters to allow the data retrieved into a CSV file having filtered in a number of different ways – which logical gateways to examine, which API or Application(s) to report on.  Finally, just to help some basic stats are produced with a count of logical gateways, API calls, APIs defined and Application definitions. The first three factors inform your cloud costs. Together the stats can help Oracle understand your use case. Note that the parameters which impact the CSV generation can also materially impact the reporting numbers.

Parameters:

The 1st three values must always be provided and in the order shown here

  1. user name to access the source management cloud
  2. password for the source management cloud
  3. The server address without any attributes e.g. https://1.2.3.4

All the following values are optional

  • -h or -help – provides this information
  • -g – Logical gateway to retrieve numbers from e.g. production or development. using ALL with this parameter will result in ALL gateways being examined
  • -f – the file to target the CSV data should be written to. If not set then the default of
  • -t – indicates whether the data provided should be taken from an APPS perspective or from an API view by passing either APPS | API
  • -d – will get script to report more information about what is happening
  • -p – reporting period which is defined by a number as follows:
    • 0 – Last 365 days – data is given as per month
    • 1 – Last 30 days – this is the default if no information is provided – data is given as per day
    • 2 – Last 7 days – data is given as per day
    • 3 – Last day – data is given as per hour

NB – still testing the utility at this moment – will remove this comment once happy

Documenting APIs on the Oracle API Platform

21 Monday May 2018

Posted by in API Platform CS, General, Oracle, Technology, tools

≈ 2 Comments

Tags

, , , , ,

Updated reflecting changes discussed in blog post:
Making Scripts Work with IDCS Deployed PaaS

The last week or two I have been working on a new API Platform utility to add to my existing tools (see here). This tool addresses the question of generating documentation.  Much as been said about API documentation and the quality of it, check out these articles :

If you look at these articles and others, there are some common themes, which are:

  • Document the URI / payload
  • Describe error handling
  • Describe contracts such as how many API calls
  • How the API is authenticated

Apiary covers the first theme to a first class standard,  and you will see Apiary called out for its ability to document APIs in a lot of articles. Well written API Blueprints will cover the bulk of the second bullet. But the other points tend to fall outside of a Blueprint and fit more the API Policies and their use.

Not everyone is so commited or enjoys writing documentation. The other driver for going beyond the use of Apiary is that some organizations feel the need to have a traditional word style document to capture/define an API’s contract in detail. With the API Platform the management portal enables an API to be published into the developer portal with the Apiary definition and a markdown file for further documentation.

Continue reading →

Tracing Executions in an API Environment

07 Wednesday Feb 2018

Posted by in API Platform CS, APIs & microservices, General, Technology

≈ 2 Comments

Tags

, , , , , , ,

As APIs become more pervasive within our solutions we see the arrival of not just design and cataloging tools such as Apiary, Apigee and others but also the arrival of gateways. The gateways provide execution of operations including validation, accounting (moneytization), routing, and other controls such as throttled checks that would often not occur until the first contact with a service bus. For example initial routing based on the API call, fine grained authentication and authorisation (differing from your firewalls who will just perhaps authorise).

In the more traditional integration middleware of Oracle Service Bus and SOA (regardless of cloud, on-premises) you can trace the execution through the middleware end to end. This tracing can be achieved because the platform creates and assigns the a UUID (aka eCID) and ensures that it is carried through the middleware. It is this very behaviour that allows Oracle to provide Business Activity Monitoring without any need to be invasive. Burt not only that in a highly distyributed environment you can track the processing of a transaction from end to end.

The challenge now is that the first point of middleware style behaviour can be at the gateway. So we actually need to move forward the UUID or equivalent forward the the first point of contact. Not only that we need to think about the fact we will see non Oracle integration middleware involved.  Within Spring, Kabana and other established frameworks and tools which are getting signficiant traction with the rise of Microservices, the Ids being used are not the same as the UUIDs used by Oracle. For example Spring Cloud Slueth uses the same HTTP header Ids that Zipkin and Kabana support:

  • X-B3-TraceId
  • X-B3-SpanId
  • X-B3-ParentSpanId

More information can be found here and here.

For the new Oracle API Platform Cloud Service we can check for the existance of the header attributes as a policy and apply actions such as:

  • Apply a header with a TraceId or spanId,
  • If a SpanId exists then we may wish to nest our call as a child span by moving the SpandId to the ParentSpanId and creating a new SpanId.

Ultimately it would be more attractive to apply the logic using the API Platform’s SDK but to get things rolling applying the IDs with the API Groovy policy is sufficient (more here).

Next question that begs, is where to put the ID and want to call it? Put the value in the body, and you’re invading the business aspect of an API with execution specific details, not to mention potentially  changing the API definition. Whilst stuffing HTTP(s) headers with custom attributes is often discouraged as the values aren’t to immediately visible. In my opinion at least the answer largely has been set by president for us. If you weren’t using HTTPS but JMS then you would use the header, but also a number of frameworks already exist that do make use of this strategy such as those mentioned above.

Using the header defined by Kabana etc means that the very process will mean that a number of Support tools out of the box will understand and be able to help visualise your logs with no additional effort.

The following is a Groovy script that could ber used for the purposes of applying an Id appropriately into the HTTP header in the API Platform:

if (!context.getApiRequest().getHeaders().containsKey ("baggage-UUID "))
{
  // use current time to seed random generator
  def now = java.time.Instant.now()
  def random = new java.util.Random(now.getEpochSecond())

  // create an array of 16 bytes to hold the random value
  byte[] uid = new byte[16]
  random.nextBytes(uid)

  // convert the random string from Hex to an ASCII string
  Writable uidInHex= uid.encodeHex()
  String uidStr= uidInHex.toString()

  // set the outbound header
  context.getServiceRequest().setHeader("baggage-UUID", uidStr)
}

Understanding API Deployment State on API Platform

25 Thursday Jan 2018

Posted by in API Platform CS, APIs & microservices, development, General, Oracle, Technology, tools

≈ 6 Comments

Tags

, , , , , , , , ,

The new Oracle API Platform makes it possible to deploy different versions of your APIs to different gateway instances. When you you’re managing the Development API Policies through all the different stages of the lifecycle (Design to Production) from a single management tier such a capability is essential. This is further challenged by the fact that each save of you API Definition creates a new iteration (the term used to identify each saved ‘version’ of the API)

However it does lead the challenge from a management perspective of knowing which iterations are running on each Gateway.. you can get the information from the current UI but it requires multiple steps to get the information. The UI also lends itself more to the design processes today than perhaps the more dense information views that a operational report might warrant.

I’m sure that over time these views will come, but today we can solve the problem by taking advantage of the fact that the product lives by its own ‘mission’ by offering a very rich set of APIs. As a result it becomes possible to actually build your own views. To that end I have written a Groovy script which will go through each API that can be seen and retrieves the iteration deployed to each logical gateway.

In terms of running the script you obviously need Groovy installed. It expects 3 parameters which are:

  • Server address e.g. https://1.2.3.4
  • Username e.g. weblogic
  • Password e.g. Welcome1

You can hardwire into the script default values which will then be used if no parameters are provided.

Here is a screenshot of some output.  I have masked out some information for reasons of security. But there should be enough here to give a sense of what is happening:

APIPlatformScript

The script includes suppressing certificate validation – necessary if you haven’t yet deployed your own specific certificate and still working with the default Oracle certificate.

Feel free to take the script and play with it. I make no claims to it’s elegance etc but I have tried to comment it so you can see what is going on. I have tried to keep the code fairly simple so you can see how it works and processes the JSON responses. The script is available at: https://github.com/mp3monster/Utils/blob/master/getDeployedIterations.groovy

For more about the APIs involved in the script, checkout
