Category Archives: Cloud Native

All things usually associated with Cloud Native development e.g. K8s, microservices, Fluentd, Prometheus etc. This Correlates to my domain cloud-native.info

Kubernetes Deployment – pulling from OCI Registry (OCIR)

26 Thursday May 2022

Posted by mp3monster in General, Technology, Oracle, APIs & microservices, Cloud Native, Oracle Cloud Native

≈ Leave a comment

Tags

Containers, deploy, K8s, Kuberrnetes, OCIR, registry, secret, token

The following isn’t unique to OCIR, as it will hold true for any K8s Deployment YAML configuration that works with an Open Container Initiative compliant registry. To define the containers part of the YAML file we need to provide an attribute that can be used to confirm the legitimacy of the request. To do this we need to supply a token. However, we don’t want this token to be visible in plain sight in our YAML. The solution to this is to set up a secret within Kubernetes.

In the following YAML extract, we can see the secret is named.

kind: Deployment
metadata:
  name: graph-svr-deploy
  labels:
    app: arch-oke-graphql
spec:
  replicas: 1
  selector:
    matchLabels:
      app: arch-oke-graphql
  template:
    metadata:
      name: graph-svr-deploy
      labels:
        app: arch-oke-graphql
    spec:
      containers:
      - name: graphql-svr
        image: iad.ocir.io/ociobenablement/graphql-svr:latest
        ports:
        - containerPort: 4000
          name: graph-svr-web
      imagePullSecrets:
      - name: ocirsecret

This does mean we need to create the secret. As this is a one-off task the easiest step is to create the secret by hand. To do that we use the command:

@kubectl create secret docker-registry ocirsecret --docker-server=iad.ocir.io --docker-username=ociobenablement/identitycloudservice/philip.wilkins@oracle.com --docker-password='xxxxxxxx' --docker-email=philip.wilkins@oracle.com

This naturally leads to the next question where do we get the secret?

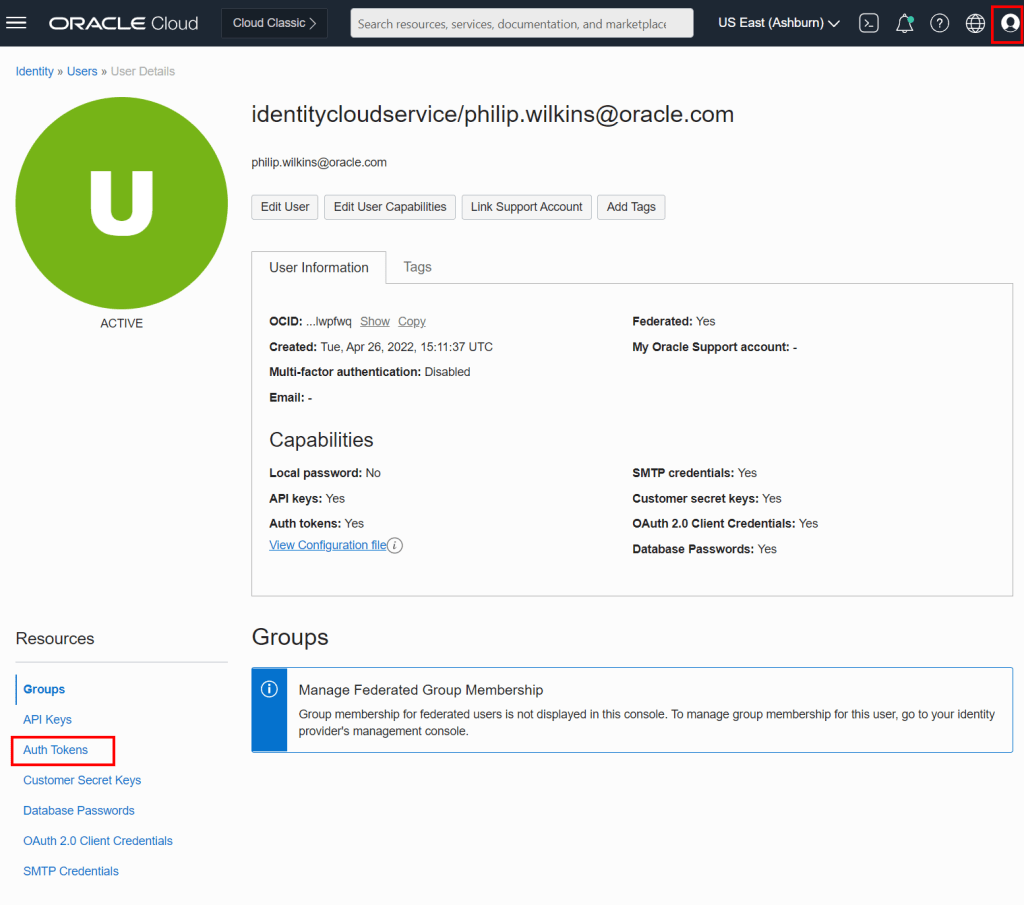

This step is straightforward. Navigating using the user icon top right (highlighted in the screenshot below), select the User Settings option to get to the screen shown below. Then use the right-hand menu option highlight (Auth Tokens). This displays a section of the UI showing your current auth tokens and provides a button that will popup a window to guide you through creating a new auth token.

Related Posts

  • Image building across machine architectures for Oracle Container Registry (OCIR)
  • Container Registry – pushing and storing containers

Share this:

  • Twitter
  • Facebook
  • LinkedIn
  • Print
  • Pocket
  • Email
  • Tumblr
  • Reddit
  • Pinterest
  • WhatsApp
  • Skype

Like this:

Like Loading...

Container Registry – pushing and storing containers

12 Thursday May 2022

Posted by mp3monster in Cloud Native, General, Oracle, Oracle Cloud Native, Technology

≈ 2 Comments

Tags

container, development, Docker, Kubernetes, OCIR, OKE, Oracle, registry, Technology

A container registry is as essential as a Kubernetes service as you want to manage the deployable resources. That registry could be the public Docker repository or something else. In most people’s cases, the registry needs to be private as you don’t want to expose your product assets to potential external tampering. As a result, we need a service such as Oracle’s container registry OCIR.

The re of this blog is going to walk through how to push a container you’ve built into OCIR and a gotcha that can trip up users if you make assumptions about how the registry works.

Build container

Let’s assume you’re building your microservices locally or retrieving vetting 3rd party services for use. In both cases, you want to manually push your assets into OCIR manually rather than have an automated build pipeline do it for you.

To make it easier to see what is happening, we can exploit some code from Oracle’s Github repo (such as this piece being developed) or you could use the classic hello world container (https://github.com/whotutorials/docker-busybox-hello-world/blob/master/Dockerfile). For the rest of the post, we’ll assume it is the code developed for the Oracle Architecture Center-provided code.

docker build -t event-data-svc .

This creates a container locally, and we can see the container listed using the command:

docker images

Setup of OCIR

We need an OCIR to target so the easiest thing is to manually create an OCIR instance in one of the regions, for the sake of this illustration we’ll use Ashburn (short code is IAD). To help with the visibility we can put the registry in a separate compartment as a child of the root. Let’s assume we’re going to call the registry GraphQL. So before creating your OCIR set up the compartment as necessary.

fragment of the compartment hierarchy

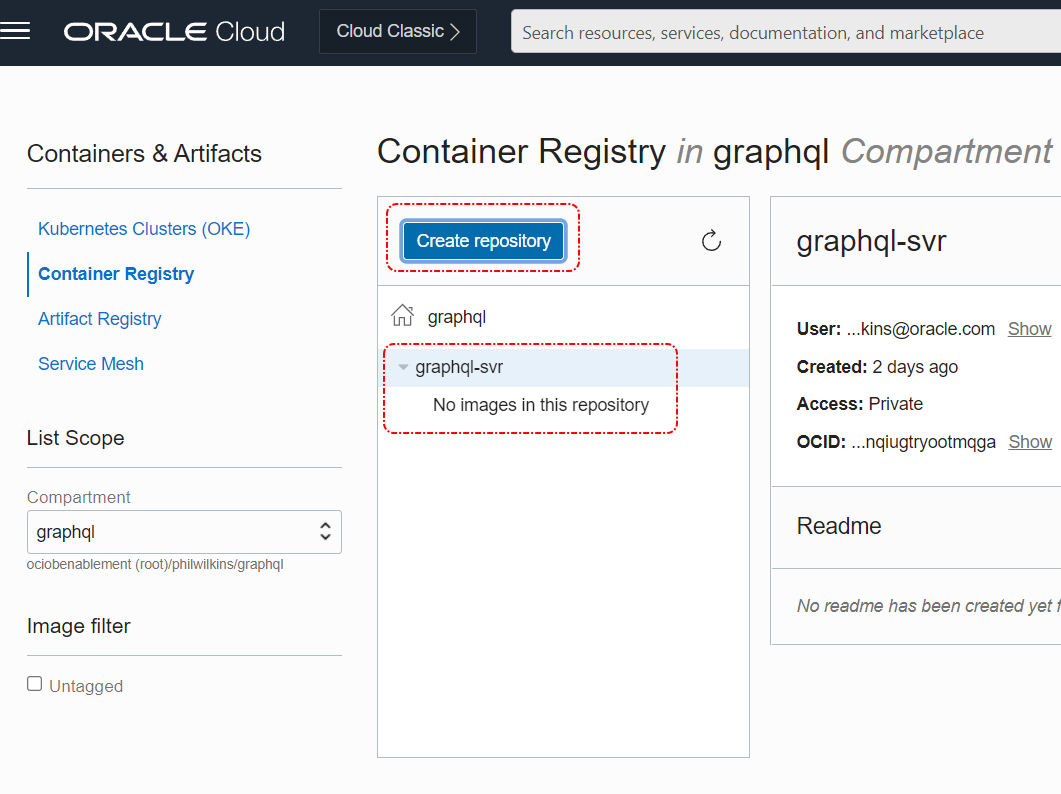

In the screenshot, you can see I’ve created a registry, which is very quick and easy in the UI (in the menu it’s in the Developer Services section).

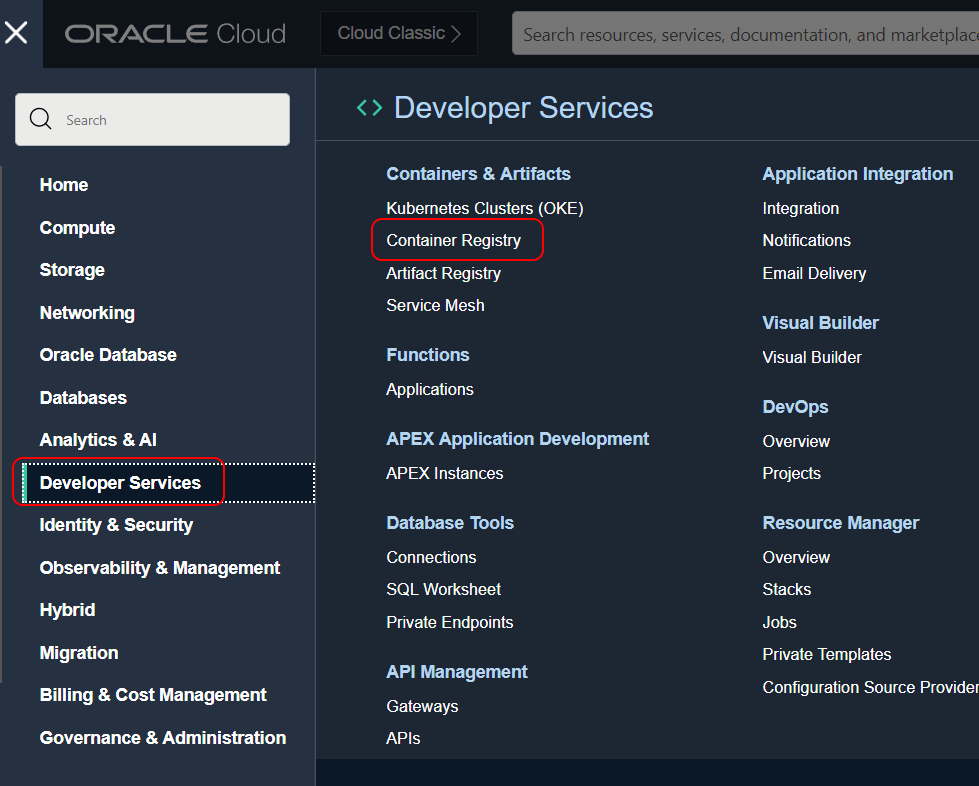

The Oracle meu to navigate to the OCIR service
the UI to create a OCIR

Finally, we click on the button to create the specific OCIR.

Deployment…

Having created the image, and with a repo ready we can start the steps of pushing the container to OCIR.

The next step is to tag the created image. This has to be done carefully as the tag needs to reflect where the image is going using the formula <region name>/<tenancy name/<registry name>:<version>. All the registries will be addressed by <region short code>.ocir.io In our case, it would be iad.ocir.io.

docker tag graph-svr:latest iad.ocir.io/ociobenablement/graphql-svr:v0.1-dev

As you may have realized the tag being applied effectively tells OCI which instance of OCIR to place the container in. Getting this wrong can be the core of the gotcha previously mentioned and we’ll elaborate upon it shortly.

To sign in you’ll need an auth token as that is passed as the password. For simplicity, I’ve passed the token in the docker command, which Docker will warn you of as being insecure, and suggest it is passed in as part of a prompt. Note my token will have been changed by the time this is published. The username is built on the structure of <cloud tenancy name>/identitycloudservice/<username>. The identitycloudservice piece only needs to be included for your authentication is managed through IDCS, as is the case here. The final bit is the URI for the appropriate regional OCIR address, as we’ve used previously.

docker login -u ociobenablement/identitycloudservice/philip.wilkins@oracle.com -p XXXXXXXXXXX  iad.ocir.io

With hopefully a successful authentication response we can push the container. It is worth noting that the Docker authenticated connection will timeout which is why we’ve put everything in place before connecting. The push command is very simple, it is the tag name assigned to the artifact including the version number.

docker push iad.ocir.io/ociobenablement/graphql/graph-svr:v0.1-dev
OCIR with several versions of a container

Avoiding the gotcha

When we deal with repositories from Git to SVN or Apache Archiva to Nexus we work with a repository that holds multiple different assets with multiple versions of those assets. as a result, when we identify an asset uniquely we would expect to name things based on server/location, repository, asset name, and version. However, here each repository is designed for one type of asset but multiple versions. In reality, a Docker repository works in the same manner (but the extended path impact is different).

This means it becomes easy to accidentally define a tag with an extra element. Depending upon your OCI tenancy privileges if you get the path wrong, OCI creates a new root compartment container repository with a name that is a composite of the name elements after the tenancy and puts your artifact in that repository, not the one you expected.

We can address this in several ways, first and probably the best option is to automate the process of loading assets into OCIR, once the process is correct, it will remain correct. Another is to adopt a principle of never holding repositories at the root of a tenancy, which means you can then explicitly remove the permissions to create repositories in that compartment (you’ll need to explicitly grant the permissions elsewhere in the compartment hierarchy because of policy inheritance. This will result in the process of pushing a container to fail because of privileges if the tag is wrong.

Visual representation of structure differences

Repository Structure
Registry Structure

Condensed to a simple script

These steps can be condensed to a simple platform neutral script as follows:

docker build -t event-data-svc .
docker tag event-data-svc:latest iad.ocir.io/ociobenablement/event-data-svc:latest

docker login -u ociobenablement/identitycloudservice/philip.wilkins@oracle.com -p XXXXX  iad.ocir.io
docker push iad.ocir.io/ociobenablement/event-data-svc:latest

This script would need modifying for each container being built, but you could easily make it parameterized or configuration drive.

A Note on Registry Standards

Oracle’s Container Registry has adopted the Open Registries standard for OCIR. Open Registries come under the Linux Foundation‘s governance. This standard has been adopted by all the major hyperscalers (Google, AWS, Azure, etc). All the technical spec information for the standard is published through GitHub rather than the main website.

References

  • Push an Image to Oracle Cloud Infrastructure Registry
  • Notes about Repository Creation
  • Creating a Container Registry
  • Open Registries
  • Policies to Control Repository Access

Share this:

  • Twitter
  • Facebook
  • LinkedIn
  • Print
  • Pocket
  • Email
  • Tumblr
  • Reddit
  • Pinterest
  • WhatsApp
  • Skype

Like this:

Like Loading...

Kubernetes Best Practises – Review & Mindmaps

13 Thursday Jan 2022

Posted by mp3monster in APIs & microservices, Cloud, Cloud Native, development, General, Technology

≈ 2 Comments

Tags

"best practise", book, Istio, Kubernetes, mindmap, review

I’ve had some time to catch up on books I’d like to read, including Kubernetes Best Practises in the last few weeks. While I think I have a fair handle on Kubernetes, the development of my understanding has been a bit ad-hoc as I’ve dug into different areas as I’ve needed to know more. This meant reading a Dummies/Introduction to entry style guide would, to an extent, likely prove to be a frustrating read. Given this, I went for the best practises book because if I don’t understand the practises, then there are gaps in my understanding still, and I can look at more foundation resources.

As it goes, this book was perfect. It quickly covered the basics of the different aspects of Kubernetes helping to give context to the more advanced aspects, and the best practices become almost a formulated summary in each section. The depth of coverage and detail is certainly very comprehensive, explaining the background of CNI (Container Network Interface) to network-level security within Kubernetes.

The book touched upon Service Meshes such as Istio and Linkerd2 but didn’t go into great depth, but again this is probably down to the fact that Service Mesh ideas are still maturing, and you have initiatives like SMI (Service Mesh Interface still in the CNCF’s sandbox).

In terms of best practices, that really stood out for me:

  • Use of Taints and Tolerations for refined control of pod deployment (Allowing affinity to be controlled to optimise resilience, or direct types of pod deployment to nodes with specialist capabilities such as GPU).
  • There are a lot more differences and options then you might realize in terms of ingress controller capabilities, so take time to identify what you may need from an ingress controller.
  • Don’t forget pods can be scaled vertically with the VPA (Vertical Pod Autoscaler)as well as horizontally through the HPA.
  • While using a managed persistence service will make statement storage a lot easier, stateful sets will give you a very portable solution.

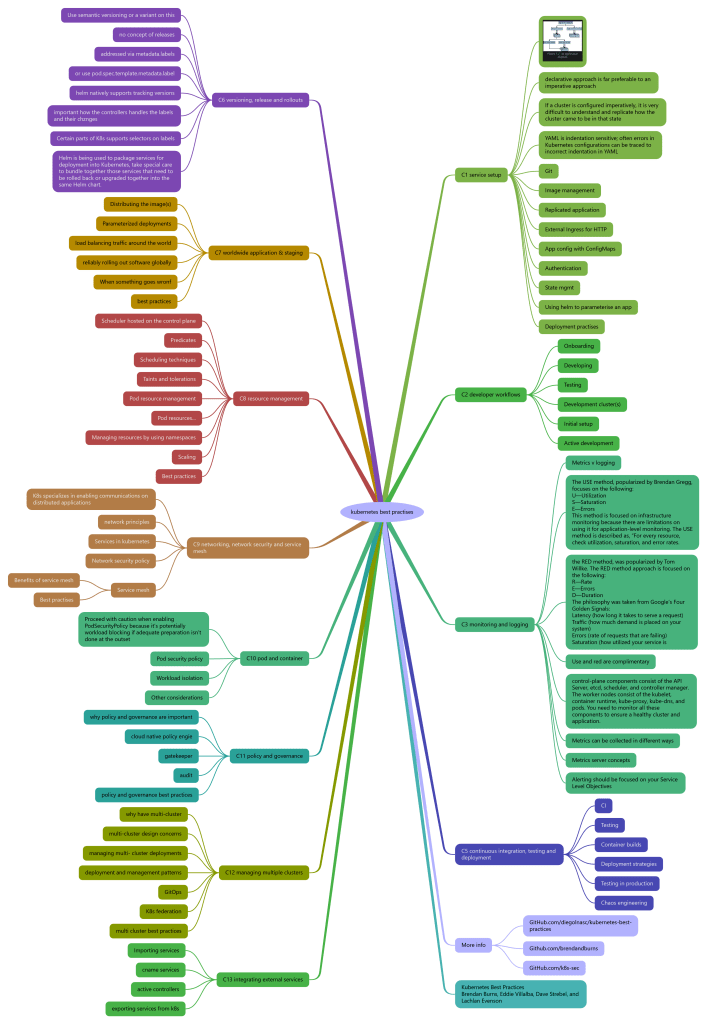

As with a lot of technical books I read. As I go through the book I build up a mind map of what I think are the key points. Doing so leaves me with a resource I can use as a quick reference, but creating the mind map helps reinforce the learning. So here is the mind map …


  • mindmap in iThoughts format
  • mindmap in FreeMind format

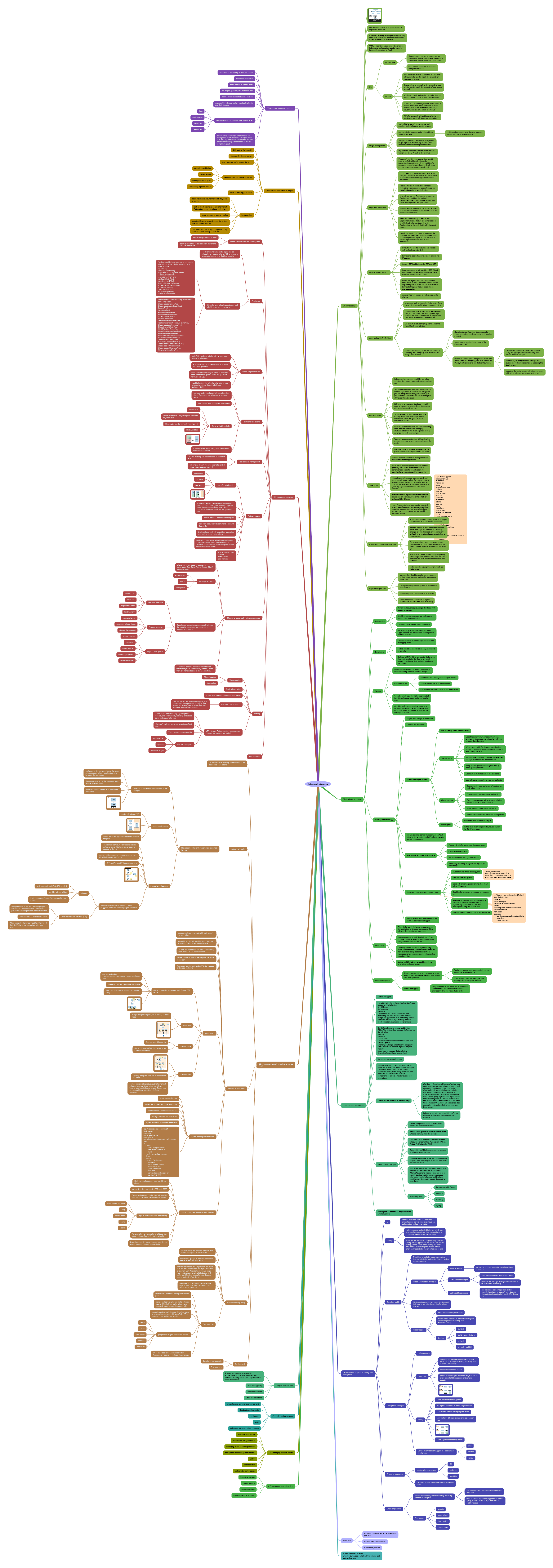

  • mindmap as an expanded png
